Xianda Discovery CNC Diamond Quarry Wire Saw Stone Cutting Machine Stone Mining
Basic Information
Model NO.: Discovery 4-2000
Type: CNC Cutting Machine
Usage: Concrete Curb, Granite, Marble, Block
Application: Machinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: CNC
Certification: CCC, SONCAP, GOST, ISO, CE, SGS
Max Processing Size: 2500*3000*1500
Dimension of Worktable: 1400*2500
Main Motor: 11kw
Outline Dimension: 7800*6300*3950
Gross Weight: 6250kg
Water Consumption: 4m3/H
Warranty Time: One Year
Transport Package: Plastic Package, Suitable for Sea Transportation
Specification: 7800*6300*3950mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Product Description

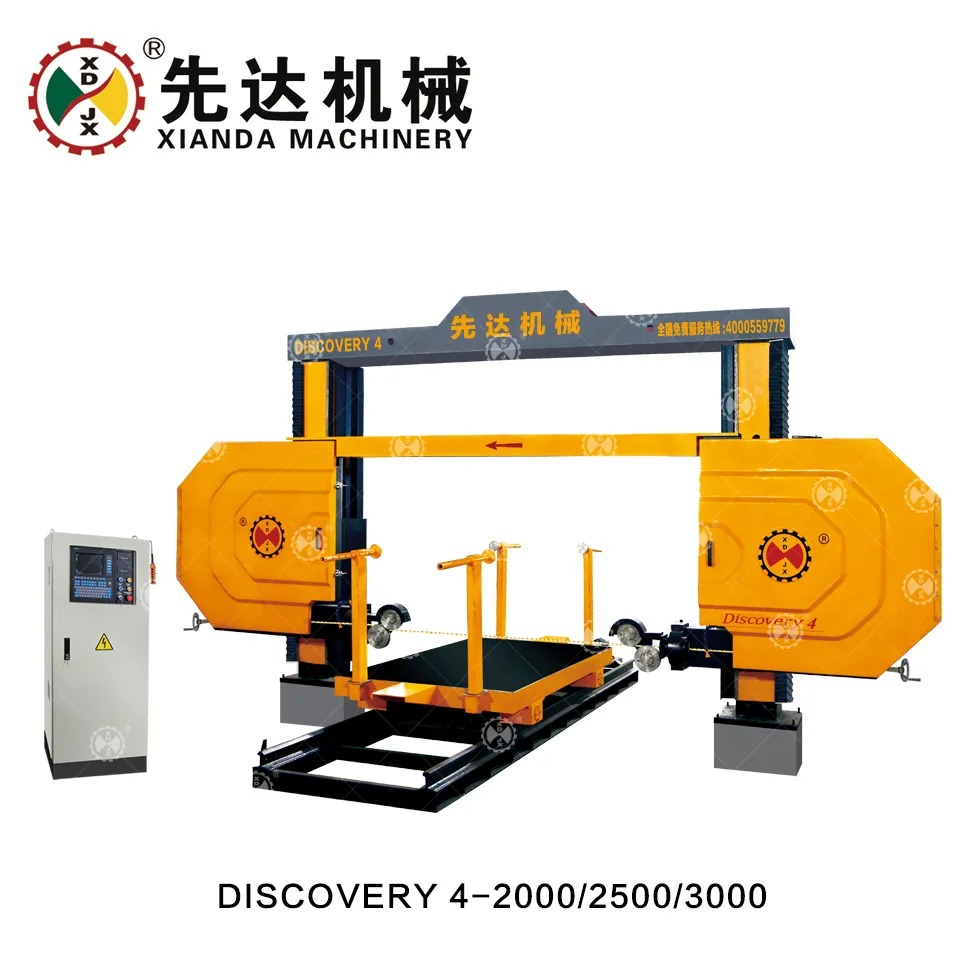

Xianda CNC Diamond Wire Saw Discovery 4-2500 Ultimate Stone Cutting Machine
Fujian Xianda DISCOVERY 4-2000/2500/3000 is our Ultimate version in CNC Diamond Wire Saw Machine. The lifting structure adopts 16 surface slideway with 28pcs rolling wheels structure. Trolley uses double nut structure, the track uses steel frame-type reinforcement structure. Cantilever gearbox uses S-type channel waterproof structure. Main motor has variable frequency speed control function, providing advantages during processing including more precise cutting, durable precision, stable cutting, and higher efficiency.

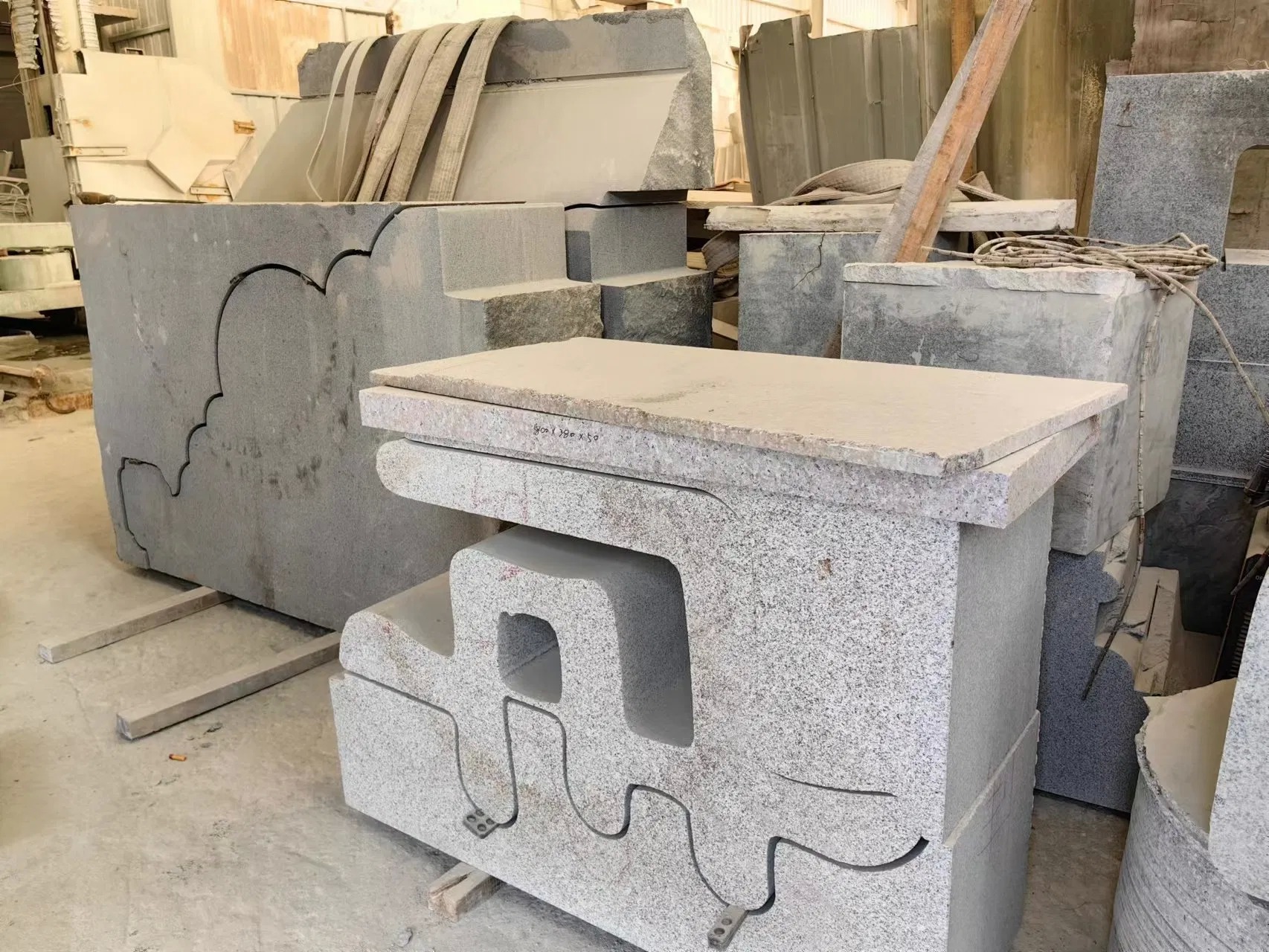

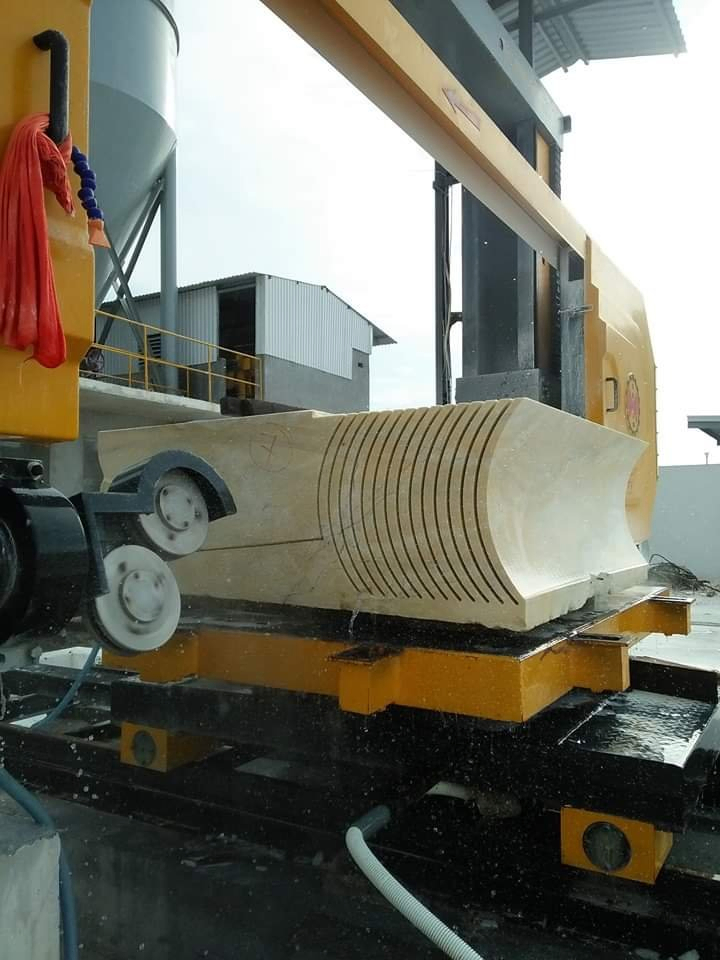

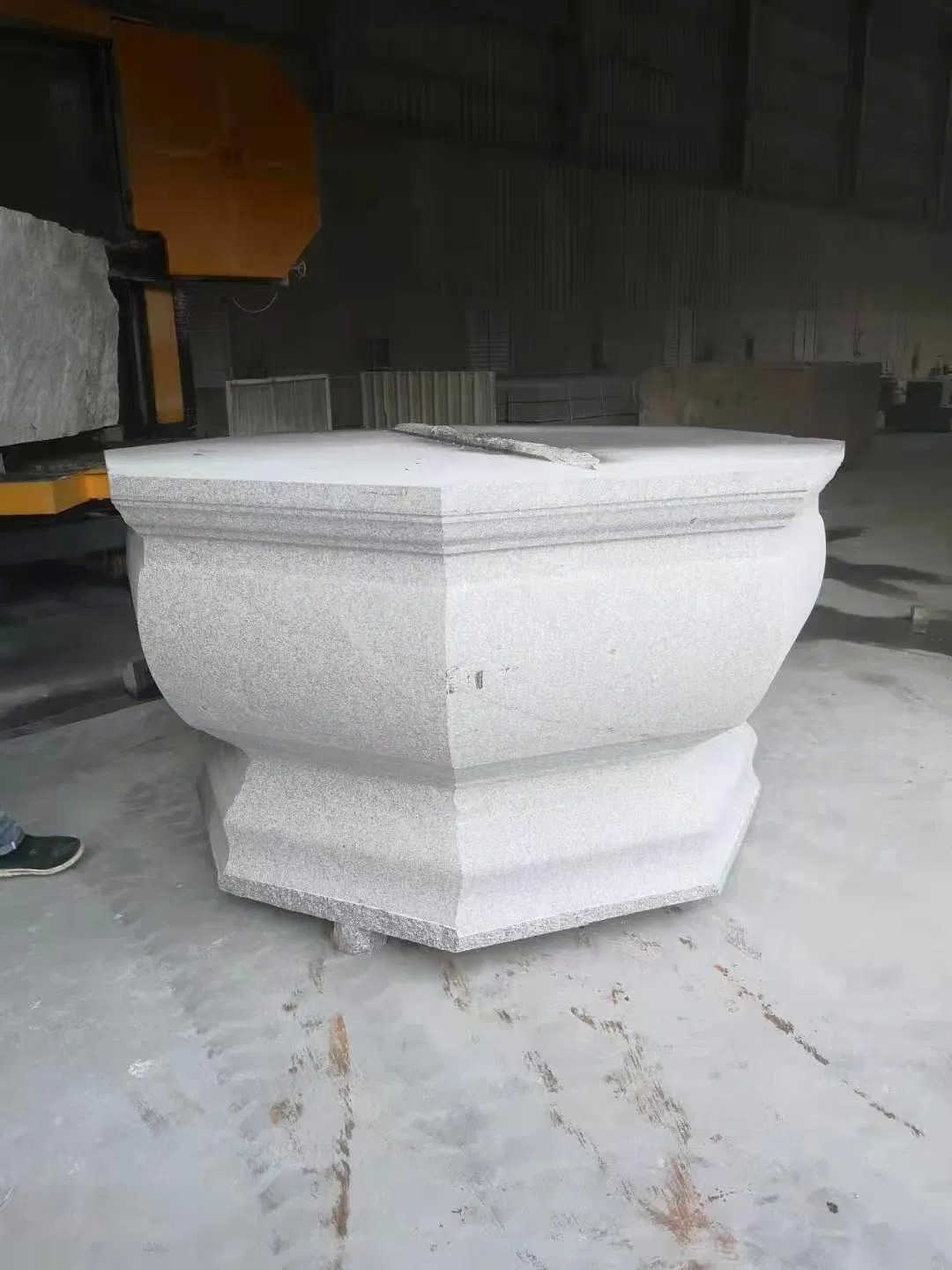

This machine adopts CNC control with four-spindle linkage, capable of processing circular stone slabs, columns, numerals, letters, Chinese characters and other shapes for stone.
Product Parameters
| Parameter |
Unit |
Discovery 4-2000 |
Discovery 4-2500 |
Discovery 4-3000 |
| Max processing size |
mm |
2000*3000*1500 |
2500*3000*1500 |
3000*3000*1500 |
| Dimension of worktable |
mm |
1400*2500 |
1400*2500 |
1400*2500 |
| Main motor |
kw |
11 |
11 |
11 |
| Outline dimension |
mm |
6800*6300*3950 |
7800*6300*3950 |
8800*6300*3950 |
| Gross weight |
kg |
6000 |
6250 |
6500 |
| Water consumption |
m3/h |
4 |
4 |
4 |
Company Profile
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area located in Jinjiang Wuli Industrial area.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machines, column processing machines, bridge cutting machines, carving machines, profiling linear machines, and baluster machines. We occupy around 80% of the market in China for column processing machines, and have users in more than 30 overseas countries.
Since its foundation in 1985, we keep "Top Technology and Superior Quality" as our standard for all machines and have obtained CE, ISO Quality Gold Award, etc. We are recognized as "China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evaluation", etc.
Xianda always keeps "Create the highest value of your stone" as our purpose. Your visiting and contacting is always welcomed.
Exhibition
Our Products
Certification
Our Service
- Training how to install the machine, training how to use the machine
- Engineers available to service machinery overseas
- After-sales service 24 hour online
If you have any problem, just contact our sales department, customer service department, etc at any time.
Manufacturer Profiles
- Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985
- 70% China market share at special shape stone cutting machine series
- Specialized in producing stone machines for exporting
Quality Control
- Our own experienced QC team
- Machines strictly inspected
- Testing Video provided for each machine before shipping if required
Delivery Time
Based on order quantity, normally three weeks against payment.
Warranty
All the machines have one year warranty.
After Services
- Marketing team responds within 24 hours
- Technical support available anytime
- Free replacement for failures caused by product quality
FAQ
Q: How to place order to your company?
A:
- Inquiry-Professional quotation
- Confirm the price, lead time, logo, payment term etc.
- Xianda sales send the Proforma Invoice with seal
- Customers make the payment as a deposit and send us Bank receipt
- Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q: What about the warranty time of the machine?
A: We provide one year for parts warranty service
Q: What can this machine be used to?
A: This machine is designed to cut lines on stone like columns lines, big arc shaped slabs and special stone shapes.
